This demo is meant to supplement the documentation, not to replace it.
stdin) and standard output (
In order to have a different device available for a standard error channel (

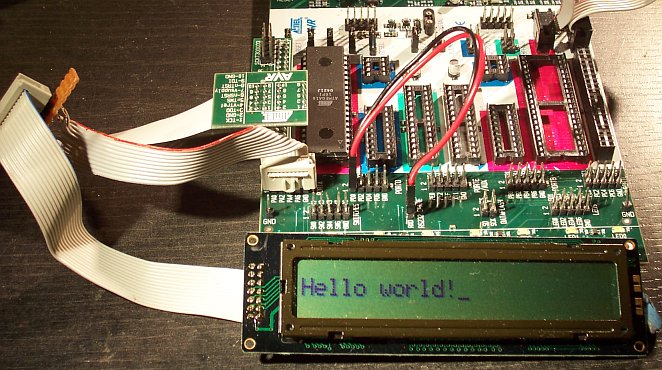

stderr), an industry-standard LCD display with an HD44780-compatible LCD controller has been chosen. This display needs to be connected to port A of the STK500 in the following way:
Wiring of the STK500
The LCD controller is used in 4-bit mode, including polling the "busy" flag so the R/~W line from the LCD controller needs to be connected. Note that the LCD controller has yet another supply pin that is used to adjust the LCD's contrast (V5). Typically, that pin connects to a potentiometer between Vcc and GND. Often, it might work to just connect that pin to GND, while leaving it unconnected usually yields an unreadable display.
Port A has been chosen as 7 pins on a single port are needed to connect the LCD, yet all other ports are already partially in use: port B has the pins for in-system programming (ISP), port C has the ports for JTAG (can be used for debugging), and port D is used for the UART connection.
stdiodemo.cThis is the main example file.
defines.hContains some global defines, like the LCD wiring
hd44780.cImplementation of an HD44780 LCD display driver
hd44780.hInterface declarations for the HD44780 driver
lcd.cImplementation of LCD character IO on top of the HD44780 driver
lcd.hInterface declarations for the LCD driver
uart.cImplementation of a character IO driver for the internal UART
uart.hInterface declarations for the UART driver
>) go before application-specific header files (in double quotes),
defines.hcomes as the first header file here. The main reason is that this file defines the value of
F_CPUwhich needs to be known before including
ioinit() summarizes all hardware initialization tasks. As this function is declared to be module-internal only (
static), the compiler will notice its simplicity, and with a reasonable optimization level in effect, it will inline that function. That needs to be kept in mind when debugging, because the inlining might cause the debugger to "jump around wildly" at a first glance when single-stepping.
The definitions of
lcd_str set up two stdio streams. The initialization is done using the
FDEV_SETUP_STREAM() initializer template macro, so a static object can be constructed that can be used for IO purposes. This initializer macro takes three arguments, two function macros to connect the corresponding output and input functions, respectively, the third one describes the intent of the stream (read, write, or both). Those functions that are not required by the specified intent (like the input function for
lcd_str which is specified to only perform output operations) can be given as
uart_str corresponds to input and output operations performed over the RS-232 connection to a terminal (e.g. from/to a PC running a terminal program), while the
lcd_str stream provides a method to display character data on the LCD text display.
delay_1s() suspends program execution for approximately one second. This is done using the
_delay_ms() function from
<util/delay.h> which in turn needs the
F_CPU macro in order to adjust the cycle counts. As the
_delay_ms() function has a limited range of allowable argument values (depending on
F_CPU), a value of 10 ms has been chosen as the base delay which would be safe for CPU frequencies of up to about 26 MHz. This function is then called 100 times to accomodate for the actual one-second delay.
In a practical application, long delays like this one were better be handled by a hardware timer, so the main CPU would be free for other tasks while waiting, or could be put on sleep.
At the beginning of
main(), after initializing the peripheral devices, the default stdio streams
stderr are set up by using the existing static
FILE stream objects. While this is not mandatory, the availability of
stdout allows to use the shorthand functions (e.g.
printf() instead of
stderr can mnemonically be referred to when sending out diagnostic messages.
Just for demonstration purposes,
stdout are connected to a stream that will perform UART IO, while
stderr is arranged to output its data to the LCD text display.
Finally, a main loop follows that accepts simple "commands" entered via the RS-232 connection, and performs a few simple actions based on the commands.
First, a prompt is sent out using
printf_P() (which takes a program space string). The string is read into an internal buffer as one line of input, using
fgets(). While it would be also possible to use
gets() (which implicitly reads from
gets() has no control that the user's input does not overflow the input buffer provided so it should never be used at all.
fgets() fails to read anything, the main loop is left. Of course, normally the main loop of a microcontroller application is supposed to never finish, but again, for demonstrational purposes, this explains the error handling of stdio.
fgets() will return NULL in case of an input error or end-of-file condition on input. Both these conditions are in the domain of the function that is used to establish the stream,
uart_putchar() in this case. In short, this function returns EOF in case of a serial line "break" condition (extended start condition) has been recognized on the serial line. Common PC terminal programs allow to assert this condition as some kind of out-of-band signalling on an RS-232 connection.
When leaving the main loop, a goodbye message is sent to standard error output (i.e. to the LCD), followed by three dots in one-second spacing, followed by a sequence that will clear the LCD. Finally,
main() will be terminated, and the library will add an infinite loop, so only a CPU reset will be able to restart the application.
There are three "commands" recognized, each determined by the first letter of the line entered (converted to lower case):
Command recognition is done using
sscanf() where the first format in the format string just skips over the command itself (as the assignment suppression modifier
* is given).
F_CPU macro defines the CPU clock frequency, to be used in delay loops, as well as in the UART baud rate calculation.
UART_BAUD defines the RS-232 baud rate. Depending on the actual CPU frequency, only a limited range of baud rates can be supported.
The remaining macros customize the IO port and pins used for the HD44780 LCD driver.
As there are two different forms of controller IO, one to send a command or receive the controller status (RS signal clear), and one to send or receive data to/from the controller's SRAM (RS asserted), macros are provided that build on the mentioned function primitives.
Finally, macros are provided for all the controller commands to allow them to be used symbolically. The HD44780 datasheet explains these basic functions of the controller in more detail.
On top, a few preprocessor glueing tricks are used to establish symbolic access to the hardware port pins the LCD controller is attached to, based on the application's definitions made in defines.h.
hd44780_pulse_e() function asserts a short pulse to the controller's E (enable) pin. Since reading back the data asserted by the LCD controller needs to be performed while E is active, this function reads and returns the input data if the parameter
readback is true. When called with a compile-time constant parameter that is false, the compiler will completely eliminate the unused readback operation, as well as the return value as part of its optimizations.
As the controller is used in 4-bit interface mode, all byte IO to/from the controller needs to be handled as two nibble IOs. The functions
hd44780_innibble() implement this. They do not belong to the public interface, so they are declared static.
Building upon these, the public functions
hd44780_inbyte() transfer one byte to/from the controller.
hd44780_wait_ready() waits for the controller to become ready, by continuously polling the controller's status (which is read by performing a byte read with the RS signal cleard), and examining the BUSY flag within the status byte. This function needs to be called before performing any controller IO.
hd44780_init() initializes the LCD controller into 4-bit mode, based on the initialization sequence mandated by the datasheet. As the BUSY flag cannot be examined yet at this point, this is the only part of this code where timed delays are used. While the controller can perform a power-on reset when certain constraints on the power supply rise time are met, always calling the software initialization routine at startup ensures the controller will be in a known state. This function also puts the interface into 4-bit mode (which would not be done automatically after a power-on reset).
Control characters can be handled at this level, and used to perform specific actions on the LCD. Currently, there is only one control character that is being dealt with: a newline character (
\n) is taken as an indication to clear the display and set the cursor into its initial position upon reception of the next character, so a "new line" of text can be displayed. Therefore, a received newline character is remembered until more characters have been sent by the application, and will only then cause the display to be cleared before continuing. This provides a convenient abstraction where full lines of text can be sent to the driver, and will remain visible at the LCD until the next line is to be displayed.
Further control characters could be implemented, e. g. using a set of escape sequences. That way, it would be possible to implement self-scrolling display lines etc.
The public function
lcd_init() first calls the initialization entry point of the lower-level HD44780 driver, and then sets up the LCD in a way we'd like to (display cleared, non-blinking cursor enabled, SRAM addresses are increasing so characters will be written left to right).
The public function
lcd_putchar() takes arguments that make it suitable for being passed as a
put() function pointer to the stdio stream initialization functions and macros (
FDEV_SETUP_STREAM() etc.). Thus, it takes two arguments, the character to display itself, and a reference to the underlying stream object, and it is expected to return 0 upon success.
This function remembers the last unprocessed newline character seen in the function-local static variable
nl_seen. If a newline character is encountered, it will simply set this variable to a true value, and return to the caller. As soon as the first non-newline character is to be displayed with
nl_seen still true, the LCD controller is told to clear the display, put the cursor home, and restart at SRAM address 0. All other characters are sent to the display.
The single static function-internal variable
nl_seen works for this purpose. If multiple LCDs should be controlled using the same set of driver functions, that would not work anymore, as a way is needed to distinguish between the various displays. This is where the second parameter can be used, the reference to the stream itself: instead of keeping the state inside a private variable of the function, it can be kept inside a private object that is attached to the stream itself. A reference to that private object can be attached to the stream (e.g. inside the function
lcd_init() that then also needs to be passed a reference to the stream) using
fdev_set_udata(), and can be accessed inside
lcd_putchar() using fdev_get_udata().
As the RS-232 input is line-buffered in this example, the macro
RX_BUFSIZE determines the size of that buffer.
\ninto its external representation carriage return/line feed (
Character input is organized as a line-buffered operation that allows to minimally edit the current line until it is "sent" to the application when either a carriage return (
\r) or newline (
\n) character is received from the terminal. The line editing functions implemented are:
\b(back space) or
\177(delete) deletes the previous character
\r, then reprints the buffer (refresh)
\t(tabulator) will be replaced by a single space
uart_init() takes care of all hardware initialization that is required to put the UART into a mode with 8 data bits, no parity, one stop bit (commonly referred to as 8N1) at the baud rate configured in defines.h. At low CPU clock frequencies, the
U2X bit in the UART is set, reducing the oversampling from 16x to 8x, which allows for a 9600 Bd rate to be achieved with tolerable error using the default 1 MHz RC oscillator.
The public function
uart_putchar() again has suitable arguments for direct use by the stdio stream interface. It performs the
\r\n translation by recursively calling itself when it sees a
\n character. Just for demonstration purposes, the
\a (audible bell, ASCII BEL) character is implemented by sending a string to
stderr, so it will be displayed on the LCD.
The public function
uart_getchar() implements the line editor. If there are characters available in the line buffer (variable
rxp is not
NULL), the next character will be returned from the buffer without any UART interaction.
If there are no characters inside the line buffer, the input loop will be entered. Characters will be read from the UART, and processed accordingly. If the UART signalled a framing error (
FE bit set), typically caused by the terminal sending a line break condition (start condition held much longer than one character period), the function will return an end-of-file condition using
_FDEV_EOF. If there was a data overrun condition on input (
DOR bit set), an error condition will be returned as
Line editing characters are handled inside the loop, potentially modifying the buffer status. If characters are attempted to be entered beyond the size of the line buffer, their reception is refused, and a
\a character is sent to the terminal. If a
\n character is seen, the variable
rxp (receive pointer) is set to the beginning of the buffer, the loop is left, and the first character of the buffer will be returned to the application. (If no other characters have been entered, this will just be the newline character, and the buffer is marked as being exhausted immediately again.)
